THB-Resistant Film Capacitors LE-RX Series

TOPEN TOPProductsTHB-Resistant Film Capacitors LE-RX Series
LE-RX Series

Features

  • Class X2 series certified to major international standards at a rated voltage of 310 V AC
  • Compliant with the latest IEC 60384-14 Ed5
  • High-temperature and high-humidity (THB) resistance 85°C, 85% RH, 310 V AC, 1000 hr Certified to ANNEX I Grade IIIB
  • For noise suppression on power lines in electronic and electrical equipment

Dimensions & Model numbering system

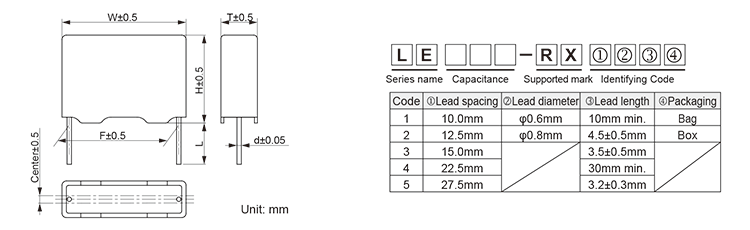

LE-RX Series Dimensions

Electrical Specifications

You can view the entire table by scrolling.

Model number Identifying
code		 Capacitance
μF±10%		 Dimensions (mm) Test Voltage Insulation
resistance		 PDF
W H T
LE104-RX 11** 0.10 13.0 16.0 5.5 Line to Line
1,870V DC
50/60Hz
60sec

Line to Line
1,000V AC
50/60Hz
60sec

Line to Case
2,120V AC
50/60Hz
60sec		 Line to Line
C≤0.33μF
15,000MΩmin.
C>0.33μF
5,000Ω·Fmin.

Line to Case
100,000MΩmin.

(at 100V DC)		 pdf
31** 0.10 17.0 12.0 5.0
LE154-RX 11** 0.15 13.0 18.5 5.0
31** 0.15 17.0 13.0 5.0
LE224-RX 11** 0.22 13.0 21.0 5.0
31** 0.22 17.0 14.0 5.0
LE334-RX 21** 0.33 15.5 18.5 5.0
31** 0.33 17.0 17.0 5.0
32** 0.33 17.0 17.0 5.0
LE474-RX 32** 0.47 17.0 20.0 5.0
41** 0.47 25.5 17.5 5.0
42** 0.47 25.5 17.5 5.0
LE684-RX 32** 0.68 17.0 22.0 5.0
41** 0.68 25.5 19.5 5.0
42** 0.68 25.5 19.5 5.0
LE105-RX 41** 1.00 25.5 21.5 5.0
42** 1.00 25.5 21.5 5.0
52** 1.00 30.5 21.5 5.0
LE155-RX 42** 1.50 25.5 29.5 5.0
52** 1.50 30.5 25.5 5.0
LE225-RX 42** 2.20 25.5 35.0 5.0
52** 2.20 30.5 29.5 5.0
LE335-RX 52** 3.30 30.5 34.0 18.0
