AC Surge Protector XD Series

TOPEN TOPProductsAC Surge Protector XD Series
XD Series

Features

  • SPD with a fail safe function to prevent short-circuit (separation of circuit and element is visually confirmable)
  • Impulse test category: JIS C 5381-11 Class II
  • Max. discharge current : 8/20μs-5,000A
  • SCCR=10kA (UL Type 2CA)
  • Protection rating (IP code): IP66

Indicator of disconnector status

XDシリーズ

Green: Normal, No Green: Abnormal

Applications

  • Semiconductor manufacturing equipment
  • Various industrial machinery
  • Servo amplifier
  • Outdoor LED lighting, etc.

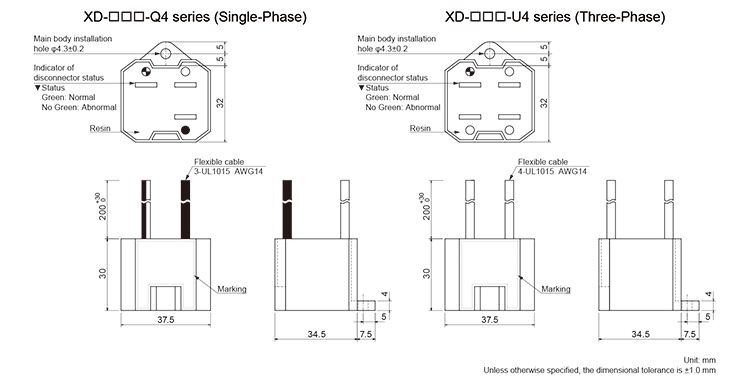

Dimensions

XD Series Dimensions

*Please note that minor chips, stains, scratches, or air bubbles
do not affect the product’s electrical performance.

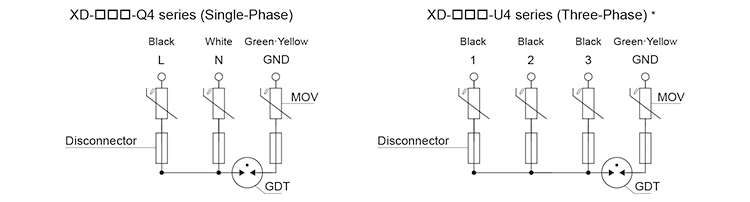

Circuit

XD series circuit

GDT: Gas-filled discharge tubes
MOV: Metal oxide varistors

*Flexible wires in black color can connect to each phase without any specific control.

Electrical Specifications

You can view the entire table by scrolling.

Model
number		 Phase Max.
continuous
operating
voltage
50/60Hz		 Voltage
protection
Level		 Nominal
discharge
current		 Max.
discharge
current		 Impulse
life
test		 PDF
XD-275-Q4 1 AC275V 1,500 2,500A
(8/20μs）		 5,000A
(8/20μs）		 Approx.
500times
(8/20μs
1,000A）		 pdf
XD-275-U4 3
XD-480-Q4 1 AC480V 2,000
XD-480-U4 3
XD-550-U4 3 AC550V 2,500

The content may change without notice. Please refer to our specification sheet before ordering.

Contact info for inquiries

If you need a similar solution,
please contact us for further information.

Contact form
