Resonant Circuit Coil

TOPEN TOPProductsResonant Circuit Coil

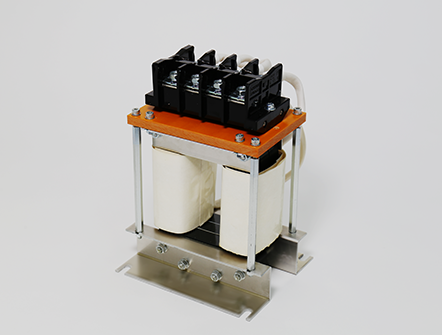

Resonant Circuit Coil

Characteristics

  • Low losses (iron and copper losses)
  • High-precision inductor characteristics

Applications

  • For resonant circuits in automated guided vehicles, EV wireless power transmission, etc

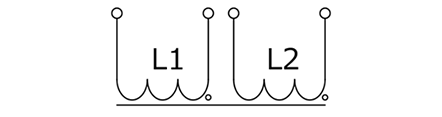

Circuit diagram

Circuit diagram of resonant circuit coil

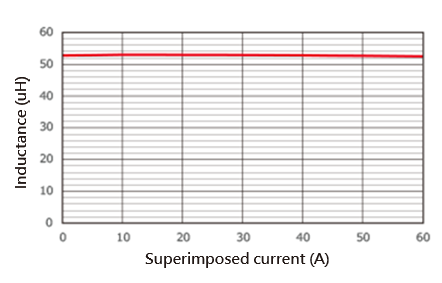

DC Superimposition Characteristics

DC superimposition characteristics of resonant circuit coil

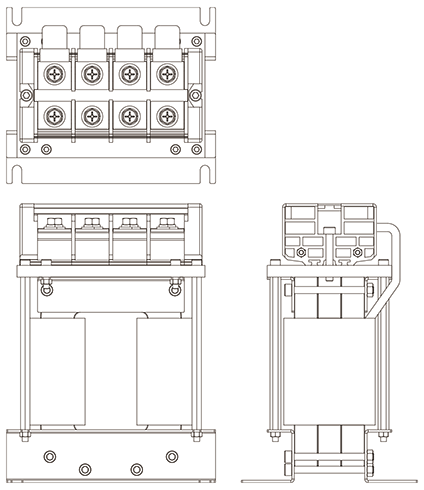

Dimension

Dimension of resonant circuit coil

Ratings and Electrical Characteristics (reference specifications)

You can see the whole table by scrolling.

Item Performance
Rated current 50A
Rated frequency 10kHz
Inductance* IDC=0A 50µH min.
IDC=60A

*Measurement condition: 25±10°C at 9kHz 1Vrms

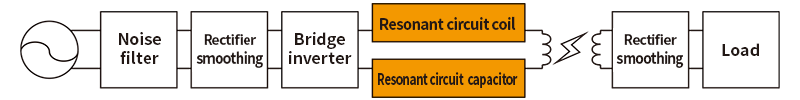

Applications (wireless power transfer)

Wireless charging device
Resonant circuit capacitor

The content may change without notice. Please refer to our specification sheet before ordering.
